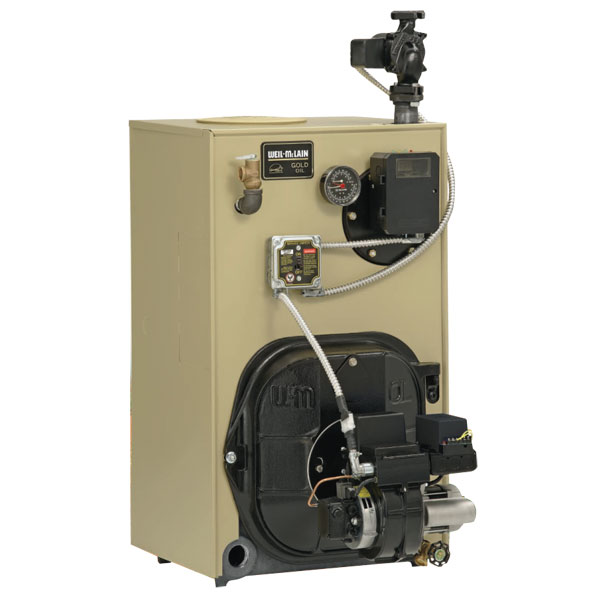

WTGO Gold Series Cast Iron Oil Boiler With Tankless DHW

Features
  • Cast Iron Heat Exchanger
  • Quick open top and swing - away burner door with full chamber access increases visibility for inspection and servicing
  • Two flue outlets - rear and top - for complete venting flexibility
  • High capacity/high efficiency tankless heater for domestic hot water
  • Recessed target wall design protects unit from flue brushes
  • Includes factory - wired circulator, service switch and Weil-McLain exclusive captured elastomer seals for added reliability
  • Oil Burner Options
    • Beckett AFG
    • Carlin AZ
    • Reillo
    • Fully packaged with:
    • Combination temperature control, LWCO & circ. relay
    • Taco 007 circulator
    • Pressure relief valve
    • Barometric damper
    • Temperature / Pressure gauge
    • Service switch

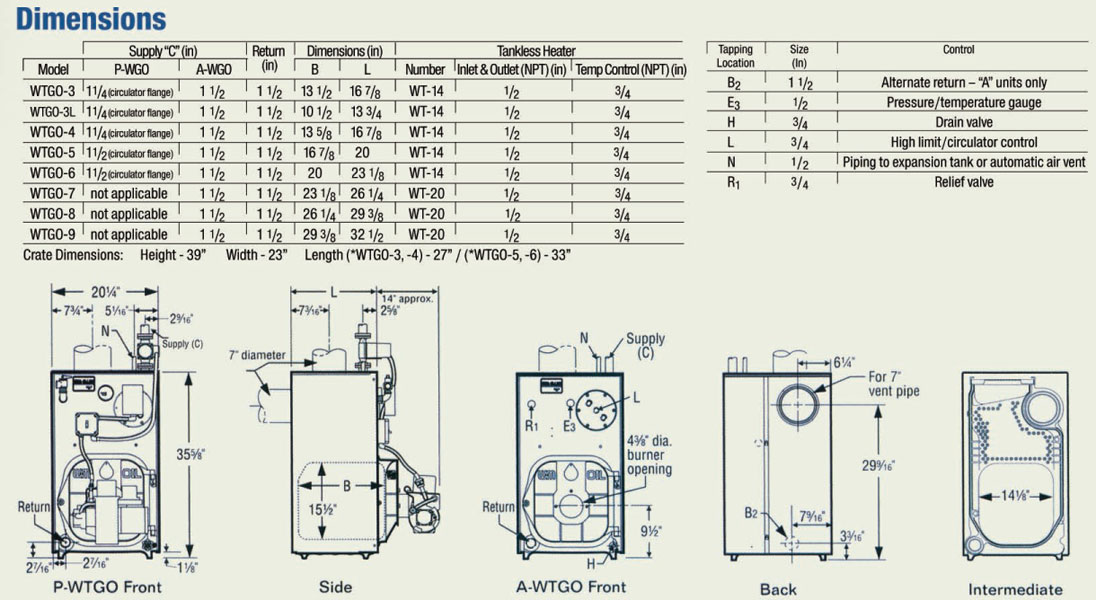

Click On Image To Expand

Ultra Energy Star ASME
Model IDModel NameDOE Htg.
Capacity MBH
IBR
MBH
Firing
Rate GPH
AFUETankless
Draw GPM
Tankless
Coil No.
Vent
Size
Water
Content
Weight
28653WTGO-3115.0100.00.9585.33.25WT-14714.9540
28654WTGO-3L114.099.00.9584.53.00WT-14714.9595
28655WTGO-4145.0126.01.2085.03.75WT-14713.4645
28656WTGO-5175.0152.01.4585.04.00WT-14715.9760
28657WTGO-6212.0184.01.7585.04.25WT-14718.4860
28658WTGO-7242.0210.02.0085.05.50WT-20720.8930
28659WTGO-8266.0231.02.305.75WT-20723.31030
28660WTGO-9295.0257.02.556.00WT-20725.81135
  • Limited Lifetime Warranty On The Cast Iron Heat Exchanger
  • 1 Year Warranty On All Parts
