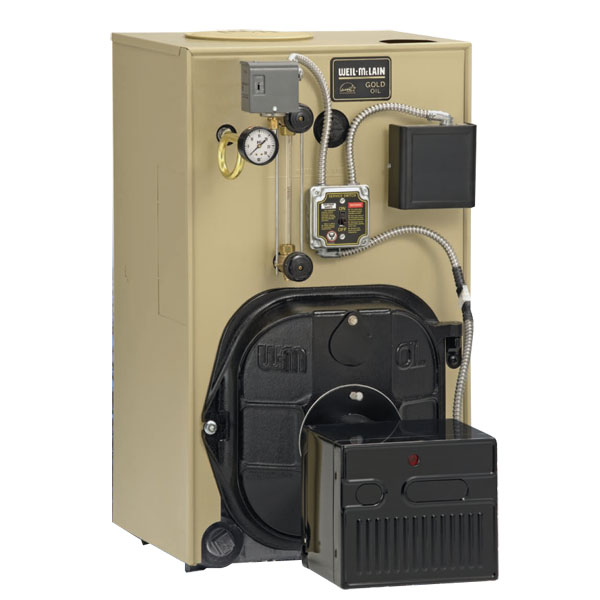

SGO Gold Series Cast Iron Steam Oil Boiler

Features

Oil-fired steam boiler with cast iron sections and tankless heater opening
Quick open top and swing - away burner door with full chamber access increases visibility for inspection and servicing
Two flue outlets - rear and top - for complete venting flexibility
Recessed target wall design protects unit from flue brushes
Has large water content for longer steaming times
Oil Burner Options
- Beckett AFG
- Carlin AZ
- Reillo
Fully packaged with:
- High limit pressure control
- Low water cutoff
- Pressure relief valve
- Barometric damper
- Gauge glass, cocks, and guard
- Steam Pressure gauge
- Service switch

Click On Image To Expand

Model ID	Model Name	DOE Capicity	Steam Sq.Ft.	IBR MBH	Firing Rate GPH	AFUE	Tankless Coil No.	Water Content	Weight
28661	SGO-3	114.0	354	85.0	0.95	84.1	35-S-29	3.25	600
28662	SGO-4	144.0	450	108.0	1.20	84.0	35-S-29	3.50	705
28663	SGO-5	174.0	546	131.0	1.45	83.9	35-S-29	3.75	820
28664	SGO-6	210.0	658	158.0	1.75	83..7	35-S-29	4.00	920
28665	SGO-7	240.0	750	180.0	2.00	83.6	35-S-29	4.00	990
28666	SGO-8	266.0	833	200.0	2.30		35-S-29	4.00	1090
28667	SGO-9	295.0	921	221.0	2.55		35-S-29	4.00	1195
